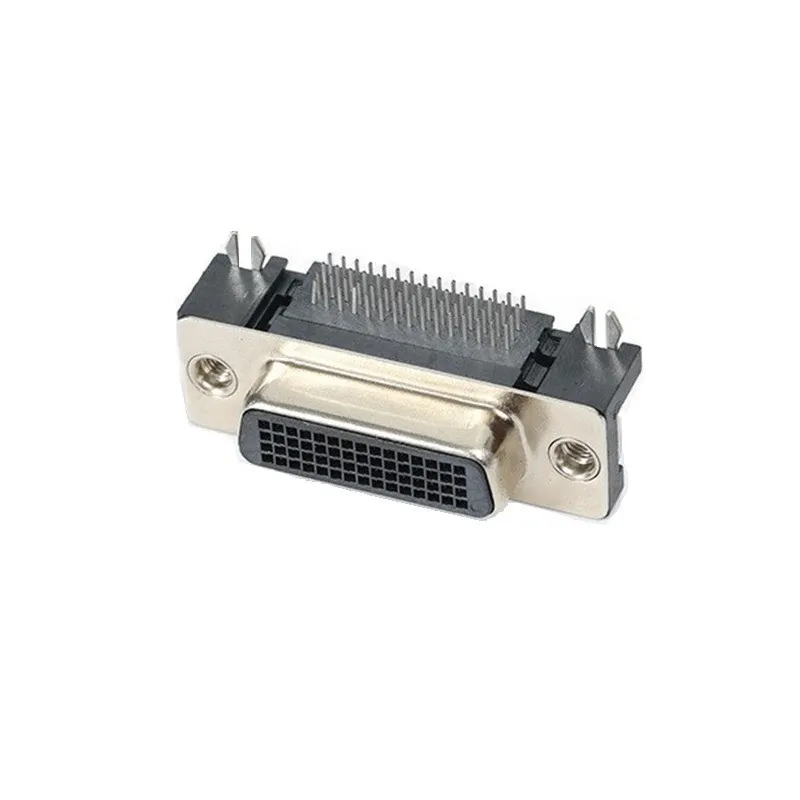

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

When you are designing a compact piece of equipment but need a large number of input and output lines, your choice of connector is the most critical design decision you will make. To maximize your I/O density, the LFH connector is one of the best solutions available on the market. A single LFH-200 connector, for example, can provide 200 connections in a footprint that is dramatically smaller than what would be required for multiple lower-pin-count connectors. KinKuo can supply you with this high-density connector and work with you to design a custom breakout cable that transitions those 200 pins into whatever interfaces you need on the other end. This approach allows you to achieve a clean, professional, and incredibly space-efficient design for your product.

This is a classic high-density breakout scenario, often found in test and communication systems. You have a central unit with a single, high-density LFH connector, and you need to connect it to several peripheral devices that use standard D-SUB connectors. The clean and reliable solution is a custom "fan-out" or "octopus" cable. KinKuo is an expert in building these complex harnesses. We can design and manufacture a cable that starts with a single LFH-160, for example, and breaks out into multiple DB-9, DB-15, or DB-25 connectors, with each branch labeled for easy identification and built to the exact length you need. This custom assembly eliminates a nest of clumsy adapters and provides a robust, single-piece solution for your complex interface requirements. Let KinKuo simplify your connectivity with a custom LFH connector to D-SUB breakout cable.

If your technicians or customers are struggling with the high mating force of a traditional high-pin-count connector, you are risking damage to your equipment and creating a poor user experience. There is a much better option: the LFH connector. Its name—Low-Force Helix—says it all. The unique design of its contacts allows it to be mated and unmated with a fraction of the force of a comparable pin-and-socket connector. At KinKuo, we manufacture LFH connector solutions that are a perfect upgrade for these situations. By redesigning your I/O to use an LFH, you can provide a connection that is not only dense and reliable but also easy and safe to use, improving serviceability and overall product quality.

Finding a manufacturer who can reliably build a complex, fine-pitch breakout cable for an LFH connector can be challenging. This is not a simple assembly, and it requires specialized tooling and a high degree of skill to produce correctly. You need to find a factory with proven experience. KinKuo is a specialist in this exact area. We have been manufacturing custom LFH connector cable assemblies for 15 years. We have the expertise, the equipment, and the rigorous 100% testing procedures to ensure that every single one of the dozens or hundreds of connections in your breakout cable is wired perfectly. Don't risk your project on an inexperienced assembler. For a reliable, zero-defect custom LFH breakout cable, KinKuo is your trusted, expert manufacturing partner.
