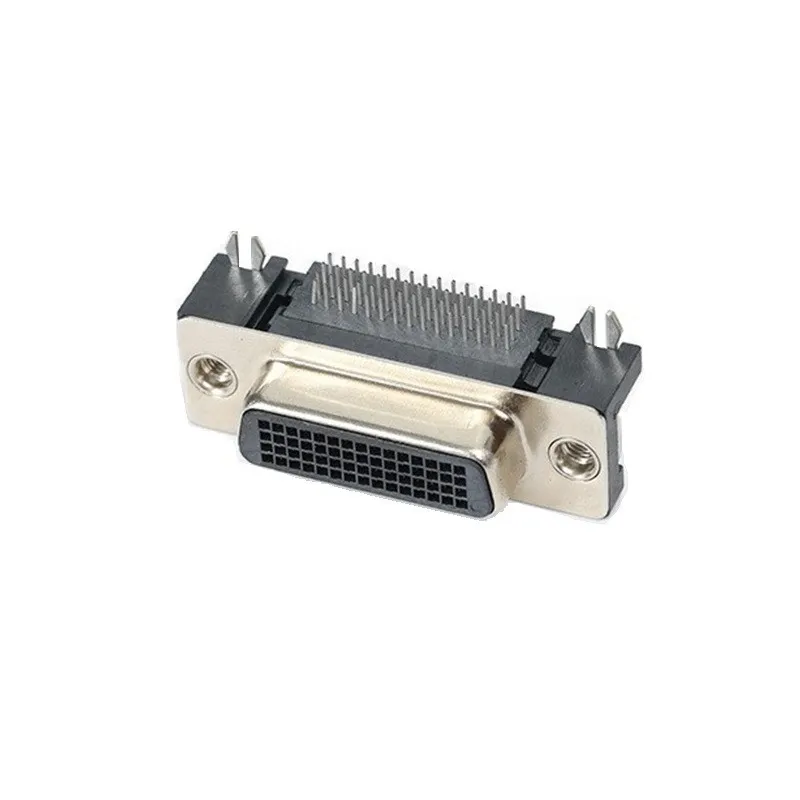

The Engineer's Guide to Specifying Industrial Grade LFH Connectors

Finding a manufacturer who can reliably build a complex, fine-pitch breakout cable for an LFH connector can be challenging. This is not a simple assembly, and it requires specialized tooling and a high degree of skill to produce correctly. You need to find a factory with proven experience. KinKuo is a specialist in this exact area. We have been manufacturing custom LFH connector cable assemblies for 15 years. We have the expertise, the equipment, and the rigorous 100% testing procedures to ensure that every single one of the dozens or hundreds of connections in your breakout cable is wired perfectly. Don't risk your project on an inexperienced assembler. For a reliable, zero-defect custom LFH breakout cable, KinKuo is your trusted, expert manufacturing partner.

Yes. It is a common problem for long-life equipment that the original component manufacturer may discontinue a specific part. If you have a critical piece of equipment that relies on an obsolete LFH connector or cable assembly, you are not without options. KinKuo offers a reverse-engineering service to solve this exact problem. We can take your existing "golden sample" part, perform a detailed analysis of its construction, pinout, and materials, and create a new manufacturing plan to produce a form, fit, and function identical replacement. This service can be a lifeline, saving you from a costly equipment upgrade by allowing you to continue supporting your valuable legacy systems. Before you give up on a piece of equipment due to an obsolete LFH connector, contact KinKuo.

To provide you with a fast and accurate quote for a custom LFH-200 connector assembly, we need a few key pieces of information. First, we need the pinout: a wiring diagram or "from-to" list that specifies which pin on the LFH-200 connects to which pin on the other end(s) of the cable. Second, we need to know the desired connector(s) for the other end of the cable (e.g., screw terminals, D-SUBs, etc.). Third, tell us the overall length of the cable and the lengths of any individual breakout branches. Finally, let us know any special requirements for the cable itself (e.g., does it need to be shielded, high-flex, or have a specific color?) and your estimated order quantity. With this information, the team at KinKuo can provide you with a comprehensive and competitive quote for your custom LFH connector assembly.

When you are designing a compact piece of equipment but need a large number of input and output lines, your choice of connector is the most critical design decision you will make. To maximize your I/O density, the LFH connector is one of the best solutions available on the market. A single LFH-200 connector, for example, can provide 200 connections in a footprint that is dramatically smaller than what would be required for multiple lower-pin-count connectors. KinKuo can supply you with this high-density connector and work with you to design a custom breakout cable that transitions those 200 pins into whatever interfaces you need on the other end. This approach allows you to achieve a clean, professional, and incredibly space-efficient design for your product.
