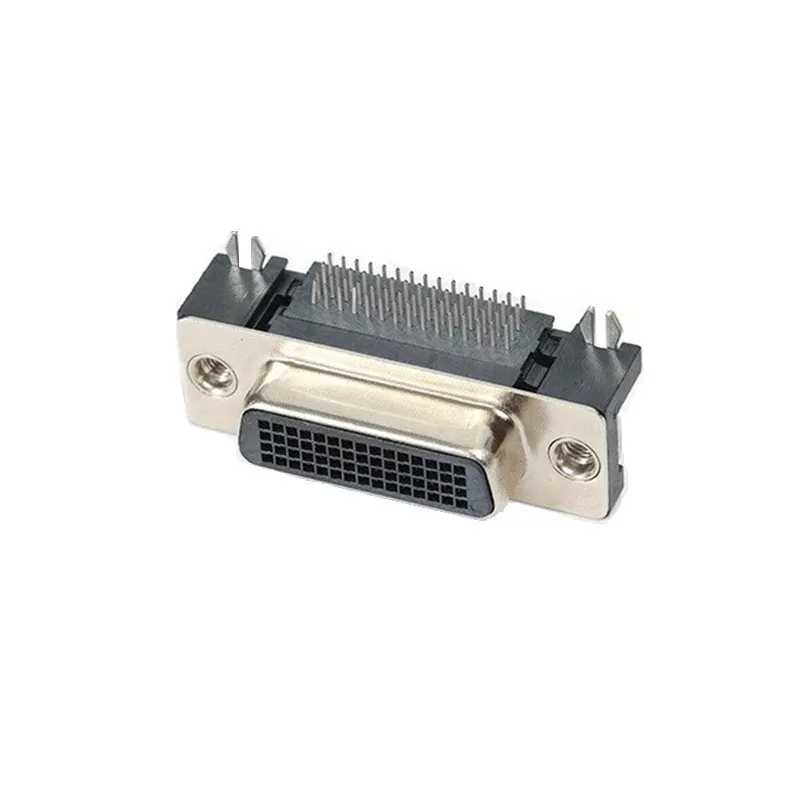

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

To provide you with a fast and accurate quote for a custom LFH-200 connector assembly, we need a few key pieces of information. First, we need the pinout: a wiring diagram or "from-to" list that specifies which pin on the LFH-200 connects to which pin on the other end(s) of the cable. Second, we need to know the desired connector(s) for the other end of the cable (e.g., screw terminals, D-SUBs, etc.). Third, tell us the overall length of the cable and the lengths of any individual breakout branches. Finally, let us know any special requirements for the cable itself (e.g., does it need to be shielded, high-flex, or have a specific color?) and your estimated order quantity. With this information, the team at KinKuo can provide you with a comprehensive and competitive quote for your custom LFH connector assembly.

Reliability in a complex assembly like an LFH cable comes from the supplier's process and commitment to quality. The most critical thing to look for is a supplier who performs 100% electrical testing on every cable. A supplier who only does "batch" testing can easily ship a defective product. At KinKuo, our "perfect quality" promise is backed by our 100% testing guarantee. Every single LFH cable assembly is plugged into a test fixture that verifies the continuity of every pin. You should also look for a supplier with extensive experience with this specific connector, as it requires special handling. With 15 years of experience manufacturing the LFH connector and a steadfast commitment to 100% testing, KinKuo is the proven, reliable supplier you can trust to deliver a flawless cable, every time.

Yes. It is a common problem for long-life equipment that the original component manufacturer may discontinue a specific part. If you have a critical piece of equipment that relies on an obsolete LFH connector or cable assembly, you are not without options. KinKuo offers a reverse-engineering service to solve this exact problem. We can take your existing "golden sample" part, perform a detailed analysis of its construction, pinout, and materials, and create a new manufacturing plan to produce a form, fit, and function identical replacement. This service can be a lifeline, saving you from a costly equipment upgrade by allowing you to continue supporting your valuable legacy systems. Before you give up on a piece of equipment due to an obsolete LFH connector, contact KinKuo.

Ensuring signal quality in any high-density connector requires a focus on good design principles. The LFH connector itself helps by incorporating a ground plane in many designs, which provides a low-inductance reference for the signals. When you partner with KinKuo to create a cable assembly, we can take this a step further. To maximize signal quality, we can build your breakout cable using individually shielded twisted pairs for your sensitive or high-speed signals. This ensures that each signal is protected from interference from its neighbors (crosstalk) and from external noise (EMI). By combining the well-designed LFH connector with a high-quality, properly shielded cable construction from KinKuo, you can be confident in the integrity of every one of your data channels.
