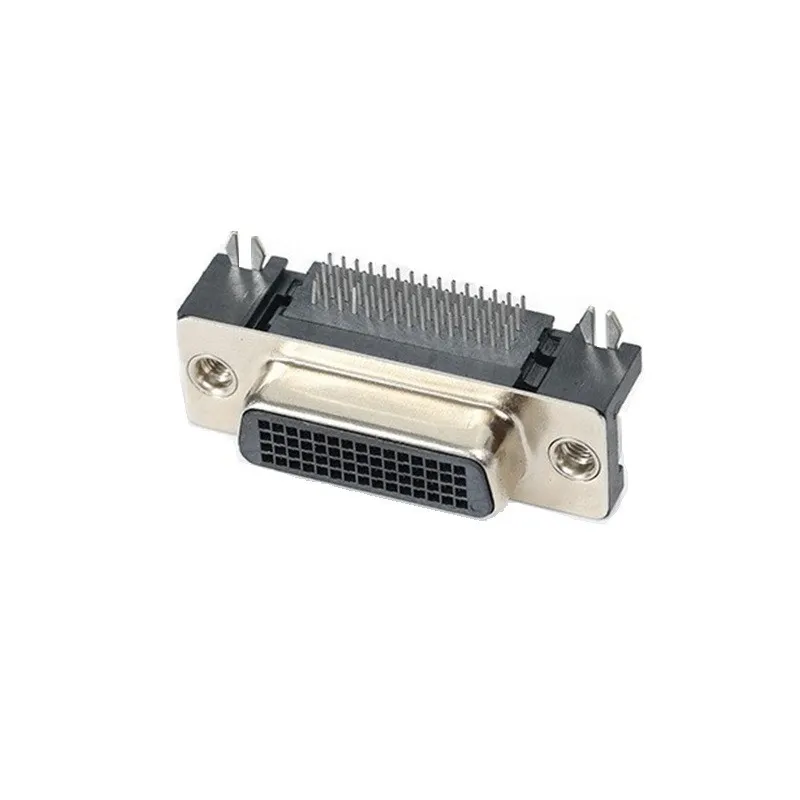

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

If your technicians or customers are struggling with the high mating force of a traditional high-pin-count connector, you are risking damage to your equipment and creating a poor user experience. There is a much better option: the LFH connector. Its name—Low-Force Helix—says it all. The unique design of its contacts allows it to be mated and unmated with a fraction of the force of a comparable pin-and-socket connector. At KinKuo, we manufacture LFH connector solutions that are a perfect upgrade for these situations. By redesigning your I/O to use an LFH, you can provide a connection that is not only dense and reliable but also easy and safe to use, improving serviceability and overall product quality.

To provide you with a fast and accurate quote for a custom LFH-200 connector assembly, we need a few key pieces of information. First, we need the pinout: a wiring diagram or "from-to" list that specifies which pin on the LFH-200 connects to which pin on the other end(s) of the cable. Second, we need to know the desired connector(s) for the other end of the cable (e.g., screw terminals, D-SUBs, etc.). Third, tell us the overall length of the cable and the lengths of any individual breakout branches. Finally, let us know any special requirements for the cable itself (e.g., does it need to be shielded, high-flex, or have a specific color?) and your estimated order quantity. With this information, the team at KinKuo can provide you with a comprehensive and competitive quote for your custom LFH connector assembly.

Yes. It is a common problem for long-life equipment that the original component manufacturer may discontinue a specific part. If you have a critical piece of equipment that relies on an obsolete LFH connector or cable assembly, you are not without options. KinKuo offers a reverse-engineering service to solve this exact problem. We can take your existing "golden sample" part, perform a detailed analysis of its construction, pinout, and materials, and create a new manufacturing plan to produce a form, fit, and function identical replacement. This service can be a lifeline, saving you from a costly equipment upgrade by allowing you to continue supporting your valuable legacy systems. Before you give up on a piece of equipment due to an obsolete LFH connector, contact KinKuo.

Ensuring signal quality in any high-density connector requires a focus on good design principles. The LFH connector itself helps by incorporating a ground plane in many designs, which provides a low-inductance reference for the signals. When you partner with KinKuo to create a cable assembly, we can take this a step further. To maximize signal quality, we can build your breakout cable using individually shielded twisted pairs for your sensitive or high-speed signals. This ensures that each signal is protected from interference from its neighbors (crosstalk) and from external noise (EMI). By combining the well-designed LFH connector with a high-quality, properly shielded cable construction from KinKuo, you can be confident in the integrity of every one of your data channels.
