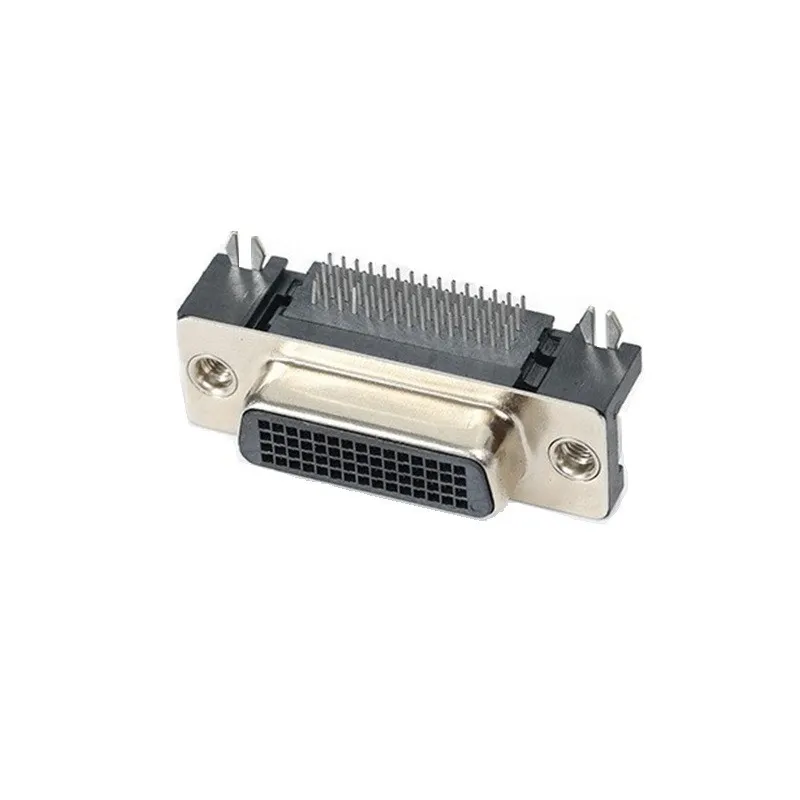

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

This is a very common requirement in the data acquisition world. You have a DAQ card with a high-density LFH-60 connector, and you need to connect it to real-world signals that are landed on a screw terminal block. You need a specific type of breakout cable. KinKuo specializes in manufacturing exactly this solution. We can build a custom cable that has the LFH-60 connector on one end and splits out into 60 individual, pre-stripped, and labeled wires on the other end, ready for you to land them on your terminal block. We can also terminate them into other connectors if needed. This provides a clean, reliable, and purpose-built solution that is far superior to trying to build a complex cable by hand. Let KinKuo provide the perfect breakout cable for your LFH-60 connector to simplify your test setup.

If your technicians or customers are struggling with the high mating force of a traditional high-pin-count connector, you are risking damage to your equipment and creating a poor user experience. There is a much better option: the LFH connector. Its name—Low-Force Helix—says it all. The unique design of its contacts allows it to be mated and unmated with a fraction of the force of a comparable pin-and-socket connector. At KinKuo, we manufacture LFH connector solutions that are a perfect upgrade for these situations. By redesigning your I/O to use an LFH, you can provide a connection that is not only dense and reliable but also easy and safe to use, improving serviceability and overall product quality.

When you are designing a compact piece of equipment but need a large number of input and output lines, your choice of connector is the most critical design decision you will make. To maximize your I/O density, the LFH connector is one of the best solutions available on the market. A single LFH-200 connector, for example, can provide 200 connections in a footprint that is dramatically smaller than what would be required for multiple lower-pin-count connectors. KinKuo can supply you with this high-density connector and work with you to design a custom breakout cable that transitions those 200 pins into whatever interfaces you need on the other end. This approach allows you to achieve a clean, professional, and incredibly space-efficient design for your product.

Ensuring signal quality in any high-density connector requires a focus on good design principles. The LFH connector itself helps by incorporating a ground plane in many designs, which provides a low-inductance reference for the signals. When you partner with KinKuo to create a cable assembly, we can take this a step further. To maximize signal quality, we can build your breakout cable using individually shielded twisted pairs for your sensitive or high-speed signals. This ensures that each signal is protected from interference from its neighbors (crosstalk) and from external noise (EMI). By combining the well-designed LFH connector with a high-quality, properly shielded cable construction from KinKuo, you can be confident in the integrity of every one of your data channels.
