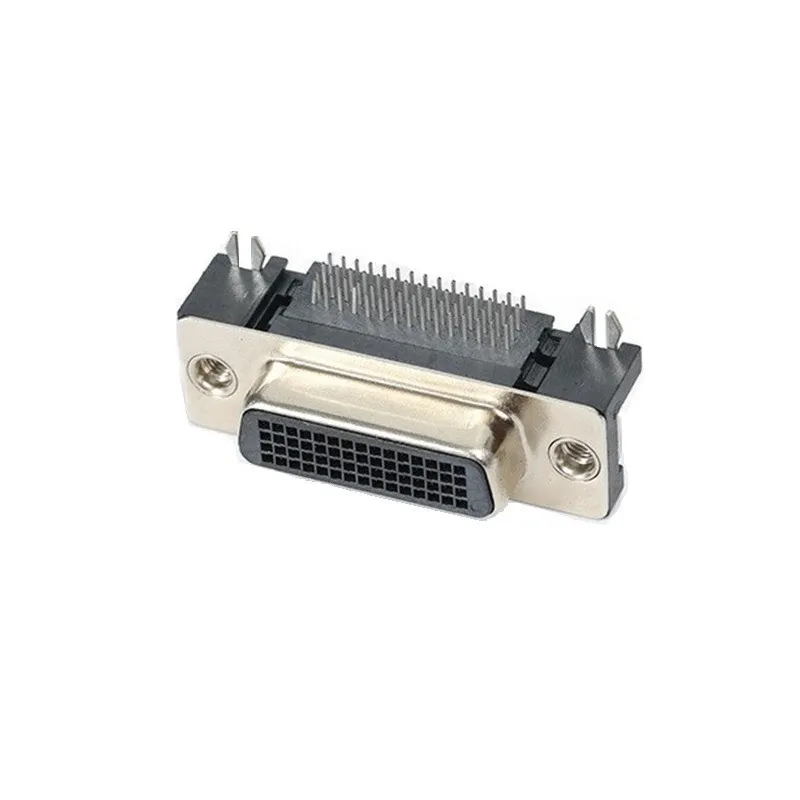

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

This is a classic high-density breakout scenario, often found in test and communication systems. You have a central unit with a single, high-density LFH connector, and you need to connect it to several peripheral devices that use standard D-SUB connectors. The clean and reliable solution is a custom "fan-out" or "octopus" cable. KinKuo is an expert in building these complex harnesses. We can design and manufacture a cable that starts with a single LFH-160, for example, and breaks out into multiple DB-9, DB-15, or DB-25 connectors, with each branch labeled for easy identification and built to the exact length you need. This custom assembly eliminates a nest of clumsy adapters and provides a robust, single-piece solution for your complex interface requirements. Let KinKuo simplify your connectivity with a custom LFH connector to D-SUB breakout cable.

Reliability in a complex assembly like an LFH cable comes from the supplier's process and commitment to quality. The most critical thing to look for is a supplier who performs 100% electrical testing on every cable. A supplier who only does "batch" testing can easily ship a defective product. At KinKuo, our "perfect quality" promise is backed by our 100% testing guarantee. Every single LFH cable assembly is plugged into a test fixture that verifies the continuity of every pin. You should also look for a supplier with extensive experience with this specific connector, as it requires special handling. With 15 years of experience manufacturing the LFH connector and a steadfast commitment to 100% testing, KinKuo is the proven, reliable supplier you can trust to deliver a flawless cable, every time.

This is a very common requirement in the data acquisition world. You have a DAQ card with a high-density LFH-60 connector, and you need to connect it to real-world signals that are landed on a screw terminal block. You need a specific type of breakout cable. KinKuo specializes in manufacturing exactly this solution. We can build a custom cable that has the LFH-60 connector on one end and splits out into 60 individual, pre-stripped, and labeled wires on the other end, ready for you to land them on your terminal block. We can also terminate them into other connectors if needed. This provides a clean, reliable, and purpose-built solution that is far superior to trying to build a complex cable by hand. Let KinKuo provide the perfect breakout cable for your LFH-60 connector to simplify your test setup.

To provide you with a fast and accurate quote for a custom LFH-200 connector assembly, we need a few key pieces of information. First, we need the pinout: a wiring diagram or "from-to" list that specifies which pin on the LFH-200 connects to which pin on the other end(s) of the cable. Second, we need to know the desired connector(s) for the other end of the cable (e.g., screw terminals, D-SUBs, etc.). Third, tell us the overall length of the cable and the lengths of any individual breakout branches. Finally, let us know any special requirements for the cable itself (e.g., does it need to be shielded, high-flex, or have a specific color?) and your estimated order quantity. With this information, the team at KinKuo can provide you with a comprehensive and competitive quote for your custom LFH connector assembly.
