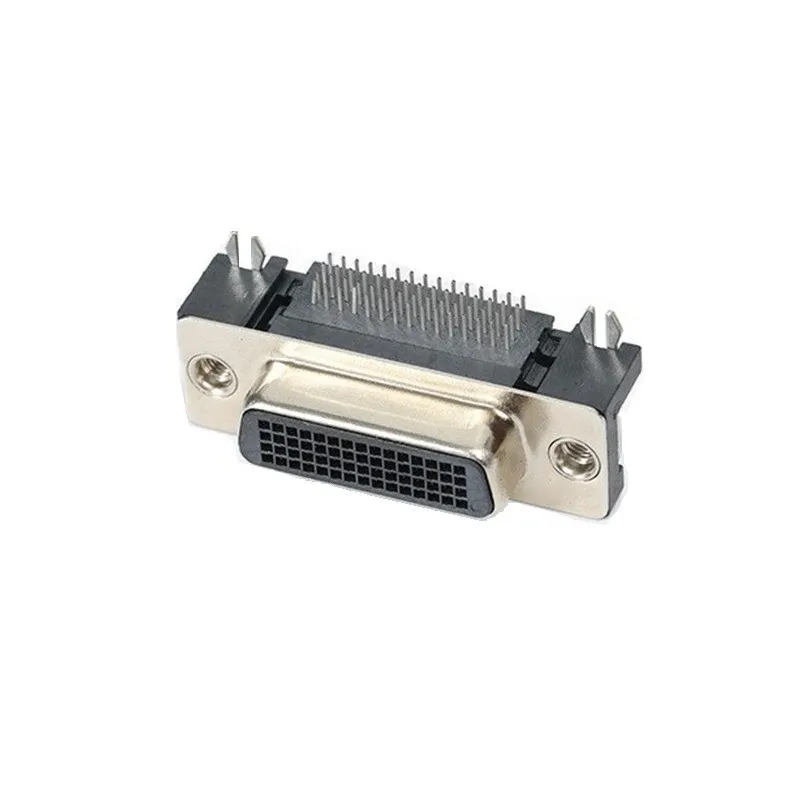

From 60-Pin to 200-Pin: The Versatility of the LFH Connector

To provide you with a fast and accurate quote for a custom LFH-200 connector assembly, we need a few key pieces of information. First, we need the pinout: a wiring diagram or "from-to" list that specifies which pin on the LFH-200 connects to which pin on the other end(s) of the cable. Second, we need to know the desired connector(s) for the other end of the cable (e.g., screw terminals, D-SUBs, etc.). Third, tell us the overall length of the cable and the lengths of any individual breakout branches. Finally, let us know any special requirements for the cable itself (e.g., does it need to be shielded, high-flex, or have a specific color?) and your estimated order quantity. With this information, the team at KinKuo can provide you with a comprehensive and competitive quote for your custom LFH connector assembly.

This is a classic high-density breakout scenario, often found in test and communication systems. You have a central unit with a single, high-density LFH connector, and you need to connect it to several peripheral devices that use standard D-SUB connectors. The clean and reliable solution is a custom "fan-out" or "octopus" cable. KinKuo is an expert in building these complex harnesses. We can design and manufacture a cable that starts with a single LFH-160, for example, and breaks out into multiple DB-9, DB-15, or DB-25 connectors, with each branch labeled for easy identification and built to the exact length you need. This custom assembly eliminates a nest of clumsy adapters and provides a robust, single-piece solution for your complex interface requirements. Let KinKuo simplify your connectivity with a custom LFH connector to D-SUB breakout cable.

While both are high-density connectors, an LFH connector and a Micro-D connector are typically used in different applications due to their design philosophies. The Micro-D, with its rugged metal shell and robust contact system, is a military-grade connector designed for extreme shock, vibration, and harsh environments. The LFH connector, on the other hand, is a commercial/industrial connector optimized for high pin density and low mating force in less extreme environments like data acquisition systems, networking equipment, or medical devices. If your primary need is the absolute highest pin count in a compact, easy-to-mate package for an indoor or lab environment, the LFH is the superior choice. If your application involves extreme environmental or mechanical stress, the Micro-D would be more appropriate. KinKuo, as an expert in industrial connectivity, specializes in providing the ideal LFH connector solutions for its intended applications.

Reliability in a complex assembly like an LFH cable comes from the supplier's process and commitment to quality. The most critical thing to look for is a supplier who performs 100% electrical testing on every cable. A supplier who only does "batch" testing can easily ship a defective product. At KinKuo, our "perfect quality" promise is backed by our 100% testing guarantee. Every single LFH cable assembly is plugged into a test fixture that verifies the continuity of every pin. You should also look for a supplier with extensive experience with this specific connector, as it requires special handling. With 15 years of experience manufacturing the LFH connector and a steadfast commitment to 100% testing, KinKuo is the proven, reliable supplier you can trust to deliver a flawless cable, every time.
