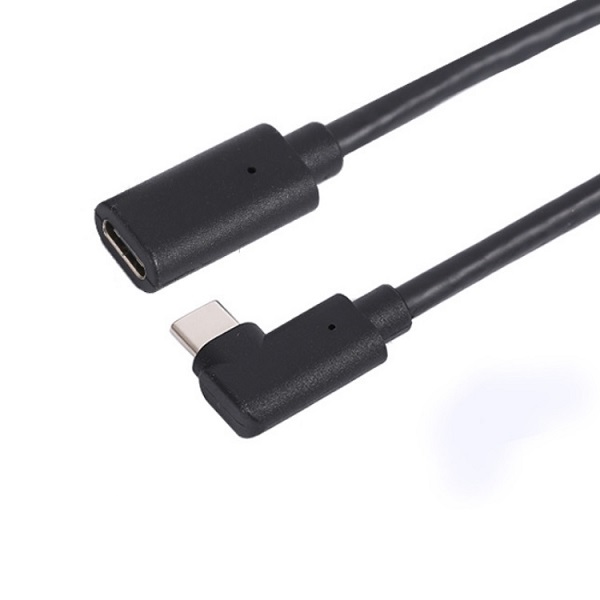

CABLE ASSY
| Part No: LKU31MF0-X | |
| Connector-1 : | USB Type-C Male Connector Au G/F Color: Black |
| Connector-2 : | USB Type-C Female Connector Au G/F Color: Black |
| Wire SPEC : | UL2725 (32AWG*1P+DAM)x4C+32AWGx4C+32AWGx1P+22AWG*2C+AEB PVC Jacket OD=4.5mm |
| Length : | 0.15m, 0.5m, 1.0m, 2m, （Customizable） |
| Color : | Black/White （Customizable） |
| Electrical Characteristics: | a) Current rating: 3A max |
| b) Voltage rating: 30VAC, DC 300V 0.01sec. | |
| c) Differential impedance: 90 ± 15 ohm | |
| d) Insulation Resistance: 1M OHMS min. | |
| e) Temperature: -20°C~ +85°C | |
| Application: | Computer, Electronics |
| Environmental standards: | RoHS Compliant |
