Amphenol Connector
| PRODUCT FAMILY |
|

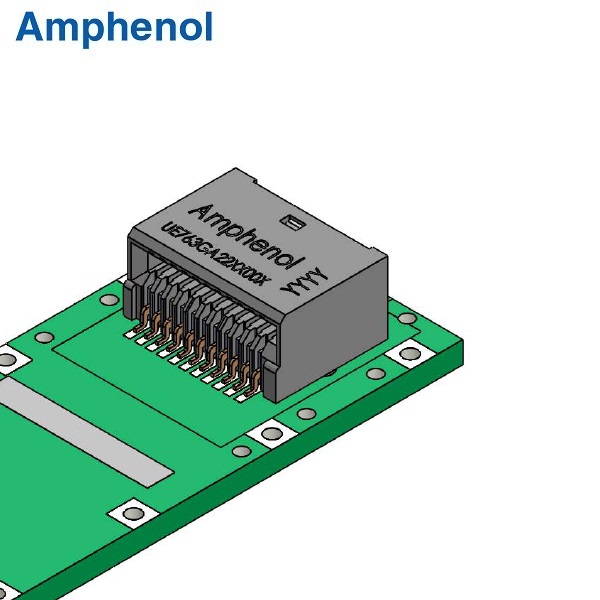

Description: SFP Connectors Pitch: 0.80mm Contacts No: 22 Application: Operating at 28Gb/s NRZ or 56Gb/s PAM4 per channel for up to 100Gb/s aggregated bandwidth solution.
Type: Right Angle SMT type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing & Spacer: High temperature plastic LCP (UL 94V-0) Shorting Bar: Conductive plastic Cage: Same cage form factor as SFP/SFP+ series |
| ELECTRICAL PERFORMANCE |
|
Operating Voltage: 30 VDC per contact Operating Current: 0.5 A per contact Differential Impedance: 100Ω +/- 10Ω
|
| MECHANICAL PERFORMANCE |
|
Durability: 250 mating cycles Contact Normal Force: 0.3 N min./PIN Mating Force: 40 N max
|
| ENVIRONMENTAL |
|
Operating and (Storage) Temperature: -55° to +85°C RoHS & Halogen-Free |
| ENVIRONMENTAL COMPLIANCE |
|
RoHS2.0: Compliant REACH SVHC: Yes |
