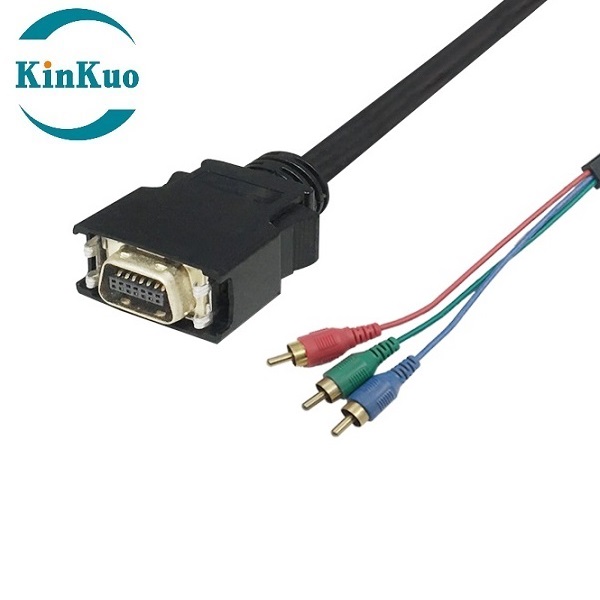

SCSI MDR 14Pin Male to 3xRCA Cable

Part No: A07-01413XXX-01

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Product Description

Connector-1 SPEC: SCSI 14Pin Pitch=1.27mm Male With ABS Hood Latch Type
Connector-2 SPEC: RCA Plug
Wire SPEC: UL20276 28AWG x 7P +AL + Braid PVC Jacket OD=6.0mm
Length: 0.5m, 1.0m, 2m, 3m, 5m （Customizable）
Color: Black, Gray (Customizable)
Cable Exit Style：Straight-Straight

Electrical Performance

Current rating: 1.0A max
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 500MΩ/Min
Differential Impedance: 100Ω ± 10Ω

Mechanical Performance

Durability: 500 mating cycles
Mating force: 1.5N per contact Max.
Unmating force: 0.4N per contact Min.
Meet The EIAJ-SCSI Industrial Standard

Market and Application

TV / Computer
Industrial Automation Equipment
Instrumentation

Environmental

Operating Temperature Range: -40°C to +80°C

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
