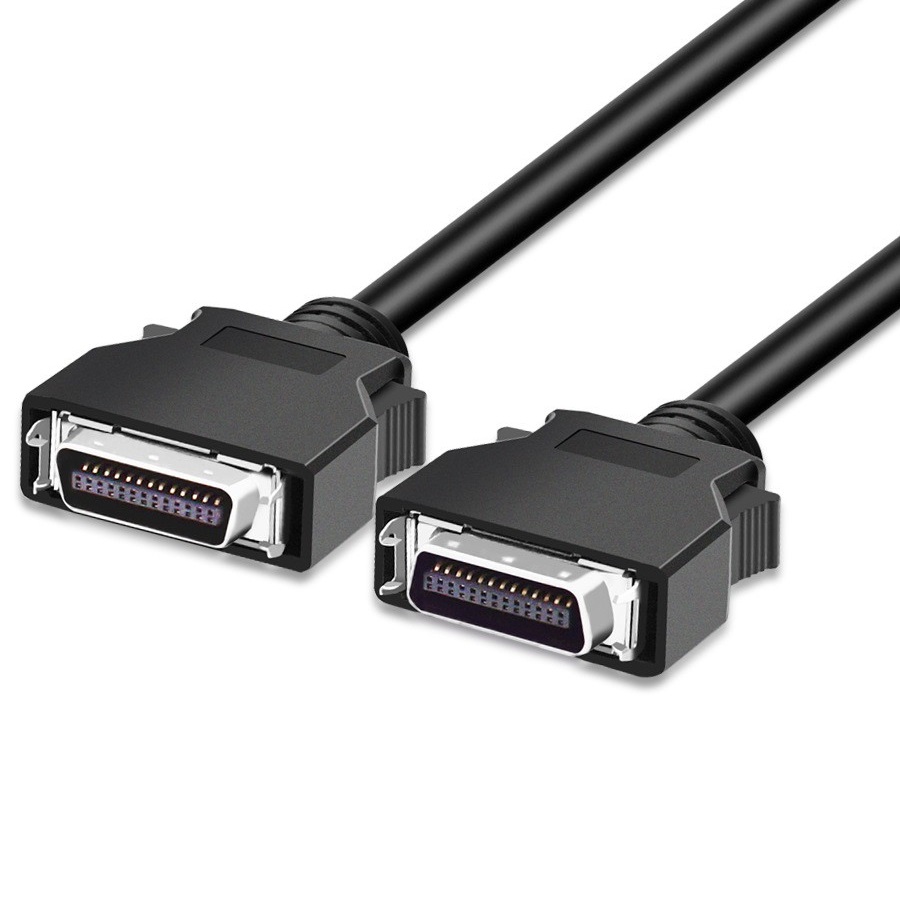

SCSI 26Pin Male Cable ABS Hood (Latch Type)

Part No: A07-02611XXX-03

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Product Description

Connector SPEC: SCSI 26Pin Pitch=1.27mm Male With ABS Hood Latch Type
Wire SPEC: UL20276 28AWG x 13P +AL + Braid PVC Jacket OD=8.0mm
Length: 0.5m, 1.0m, 2m, 3m, 5m （Customizable）
Color: Black, Gray (Customizable)
Cable Exit Style：Straight-Straight

Electrical Performance

Current rating: 1.0A max
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 500MΩ/Min
Differential Impedance: 100Ω ± 10Ω

Mechanical Performance

Durability: 500 mating cycles
Mating force: 1.5N per contact Max.
Unmating force: 0.4N per contact Min.
Meet The EIAJ-SCSI Industrial Standard

Market and Application

Instrumentation / Industrial Computer
Industrial Automation Equipment
Robot/Motion Control Card

Environmental

Operating Temperature Range: -40°C to +80°C

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
