Connectors
| PRODUCT FAMILY |
|

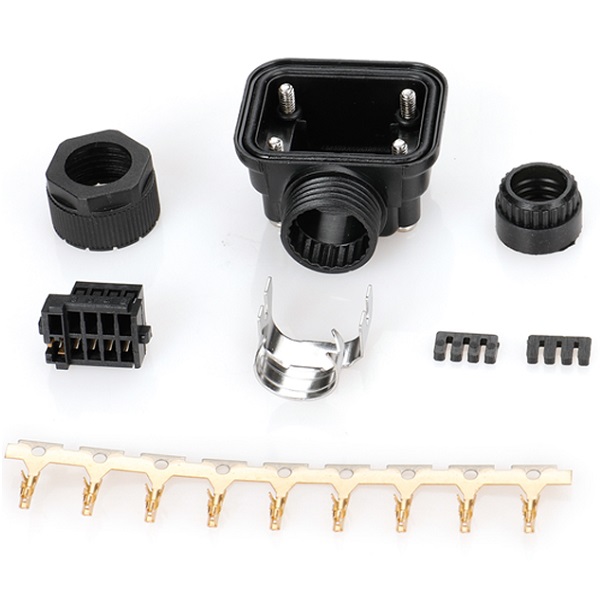

Description: Micro Motor Connector Protection Rate: IP67 Contacts No: 9 Contacts Application: Servo motor encoder
Type: Crimping Type |
| MATERIAL |
|
Pin Insulator: Synthetic Rubber/Black Pin Contact: Copper Alloy/Gold Plating Case: Synthetic resin UL94V-0 Black Shell / Screw: Steel Dust cover: Synthetic resin UL94V-0 Black |
| ELECTRICAL PERFORMANCE |
|
Current rating: 1.0A per contact max Withstanding Voltage: 500V AC／ 1 minute Insulator Resistance: 500M Ω Min. at 500V DC |
| MECHANICAL PERFORMANCE |
|
Durability: 100 mating cycles Mating Force: 29.4 N max Unmating force: 3.92 N min |
| Environmental |
| Operating Temperature Range: -25°C to +85° |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
