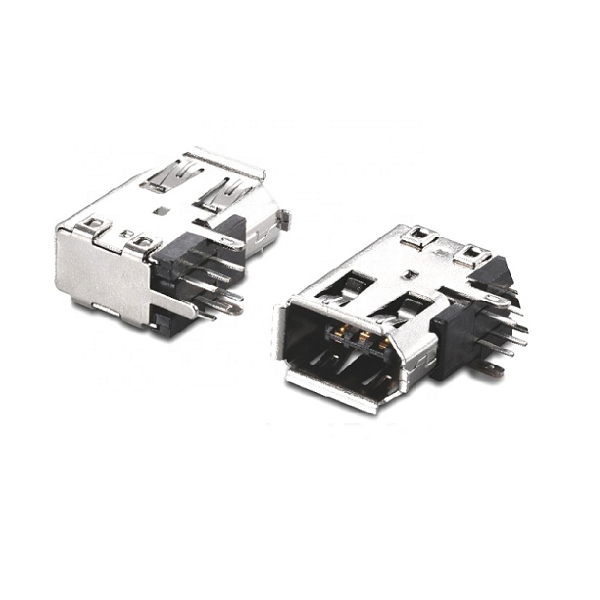

CONNECTORS
| Terminal: | Copper Alloy,Contact area plated 5u" |
| Shell: | Copper Alloy,Plated Ni |
| Housing: | PBT +30% G/F Black |
| Cover: | LCP + 30% G/F Black |
| Nut: | NA |
| Electrical Characteristics: | a) Contact Currect Rating: 1.5 Amp |
| b) Dielectric Withstanding Voltage:500V AC | |
| c) Insulation Resistance: 500MΩ/Min | |
| d) Contact Resistance: 35mΩ/Max | |
| e) Operaion Temperature: -20℃～+85℃ | |
| Application: | Servo Motor Encoder |
| Environmental standards: | RoHS Compliant |
