CONNECTORS

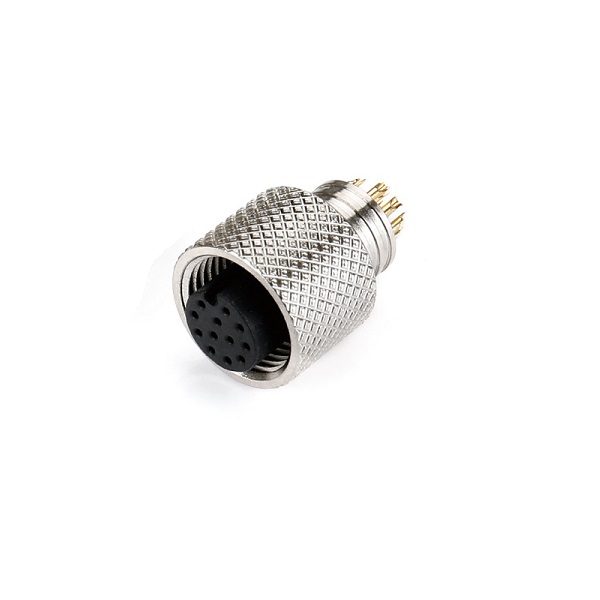

| Part No: (B10-M120T12A-02) | |
| Terminal: | Copper Alloy,Contact area plated Au G/F |
| Shell: | Copper Alloy,Plated Ni |
| Insulation Housing: | PA+30%G.F.,Black |
| Seal Ring: | NBR |
| Inner Ring: | Copper Alloy,Plated Ni |
| Electrical Characteristics: | a) Contact Currect Rating: 4 Amp |
| b) Dielectric Withstanding Voltage:250V AC | |
| c) Mating Life: 500 times Min | |
| d) Contact Resistance: 3Ω/Max | |
| e) Operaion Temperature: -25℃～+105℃ | |
| Waterproof Grade: | IP67 |
| Environmental standards: | RoHS Compliant |
