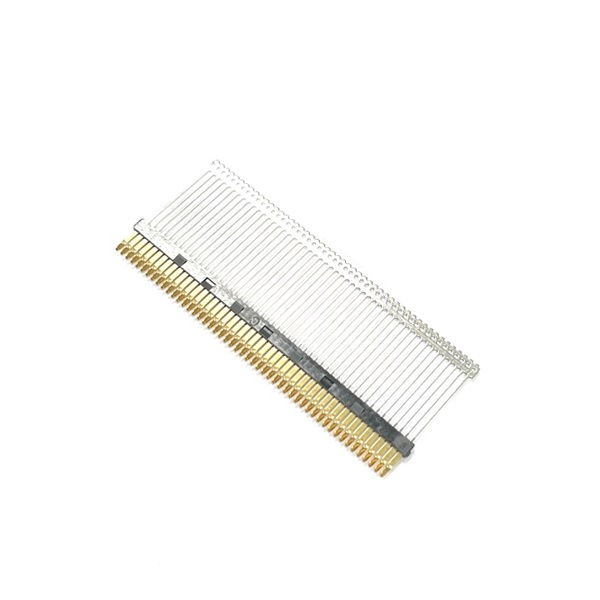

CONNECTORS
| Part No: See drawing | |
| Terminal: | Copper alloy,Contact area plated 3u" |
| Shell: | SPCC,Plated Ni |
| Housing: | LCP +30% G/F |
| Insulator: | LCP +30% G/F |
| Screw: | NA |
| Electrical Characteristics: | a) Contact Currect Rating: 0.3 Amp |
| b) Dielectric Withstanding Voltage:300V AC | |
| c) Insulation Resistance: 500MΩ/Min | |
| d) Contact Resistance: 35mΩ/Max | |
| e) Operaion Temperature: -20℃～+85℃ | |
| Application: | Industrial Equipment |
| Environmental standards: | RoHS Compliant |
