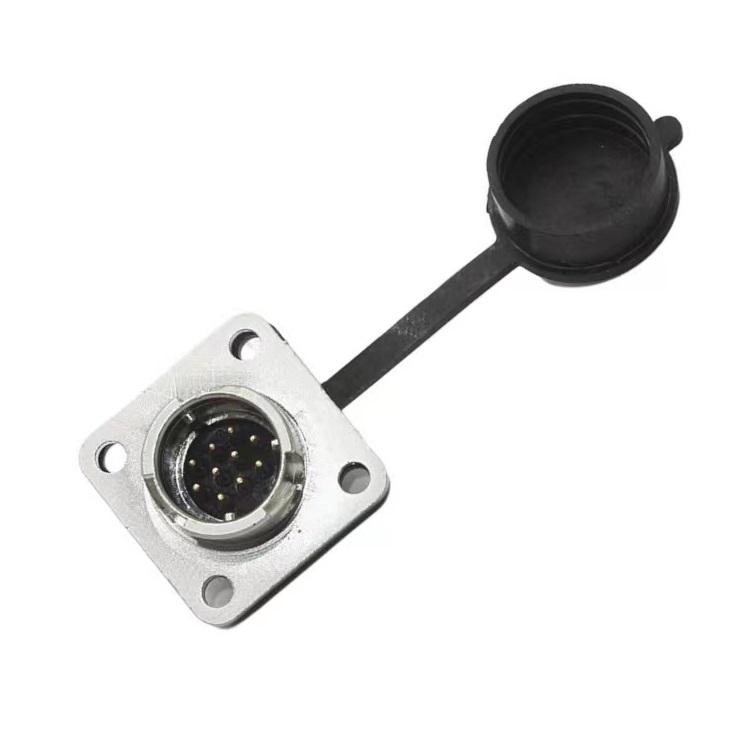

(DDK型）CM10-10P Socket Waterproof Panel Mount Connector(CM10-R10P)

Part No: B01-CM10R10P(D3)-01

DOCUMENTATION

Drawing(.PDF)

Specification

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: CM10 Series Connectors
Protection Rate: IP67

Contacts No: 2 and 10 Contacts

Application: Servo motor encoder

Type: Solder Type for Panel Mount

MATERIAL

Pin Insulator: Synthetic Rubber/Black
Pin Contact: Copper Alloy/Gold Plating
Shell: Zinc Alloy/Nickel Plating
Screw: Steel

Dust cover: Rubber/Black

ELECTRICAL PERFORMANCE

Current rating: 3.0A per contact max
Withstanding Voltage: 900V and 1500V AC(r.m.s.) ／ 1 minute
Insulator Resistance: 1000M Ω Min. at 500V DC

MECHANICAL PERFORMANCE

Durability: 250 mating cycles
Mating Force: 25 N max. per contact .
Unmating force: 0.5 N min. per contact.

Environmental

Operating Temperature Range: -25°C to +85°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
