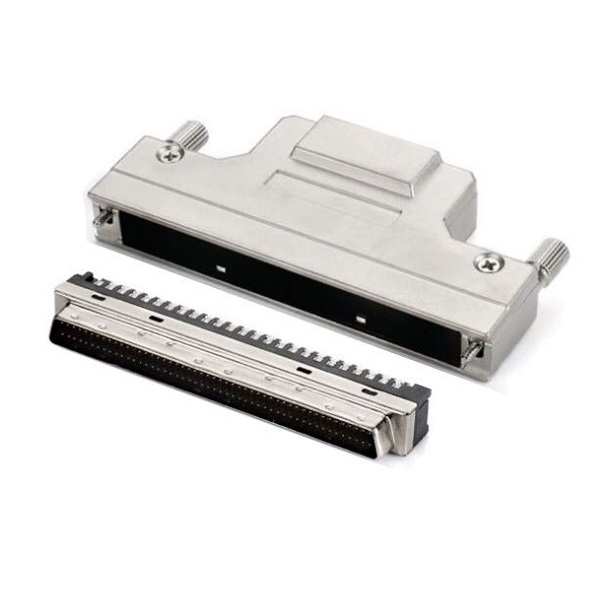

SCSI-II 100Pin Male Connector With ZINC Hood(Screw Type)

Part No: B02-100311C0-01 or B02-100111C0-X1 + B03-100NN8NX-XX

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Terminal:	Copper alloy,Contact area plated 5u"
Shell:	SPCC,Plated Ni
Housing&Cover:	PBT+30%G.F.,Black
Hood:	Zinc Alloy, Plated Ni
Screw:	Steel, Plated Ni
Electrical Characteristics:	a) Contact Currect Rating: 1 Amp
	b) Dielectric Withstanding Voltage:500V AC
	c) Insulation Resistance: 500MΩ/Min
	d) Contact Resistance: 35mΩ/Max
	e) Operaion Temperature: -55℃～+105℃
Application:	Industrial Equipment
Environmental standards:	RoHS Compliant
