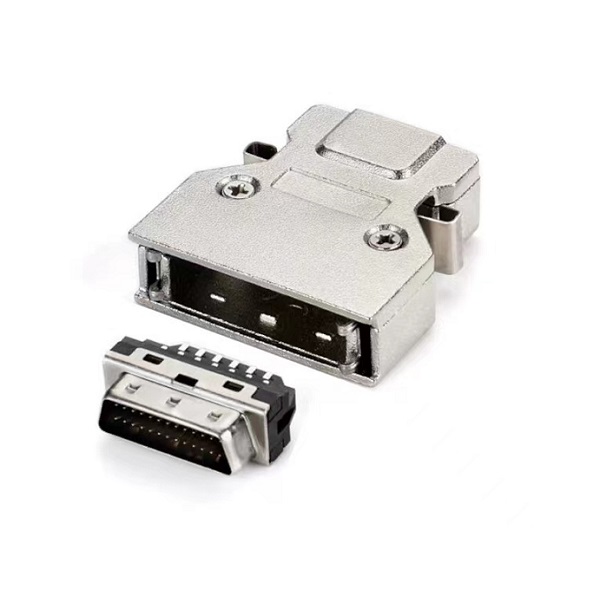

SCSI-II 26Pin Male Connector With ZINC Hood(Latch Type)

Part No: B02-026311E0-01 + B02-026NN8N3-XX

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: SCSI-II Connectors
Pitch: .050" (1.27mm)

Contacts No: 20, 26, 36, 40, 50, 68, 80 and 100

Application: Cable assembly

Type: Solder type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Tin over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black)
Shell: SPCC nickel
Hood: ZINC Metal nickel plated

Latch: Steel

ELECTRICAL PERFORMANCE

Current rating: 1.0A max
Dielectric Withstanding Voltage:500V AC
Insulation Resistance: 500MΩ/Min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating force: 1.5N per contact Max.
Unmating force: 0.25N per contact Min.

Environmental

Temperature Rating: -45°C to +105°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
