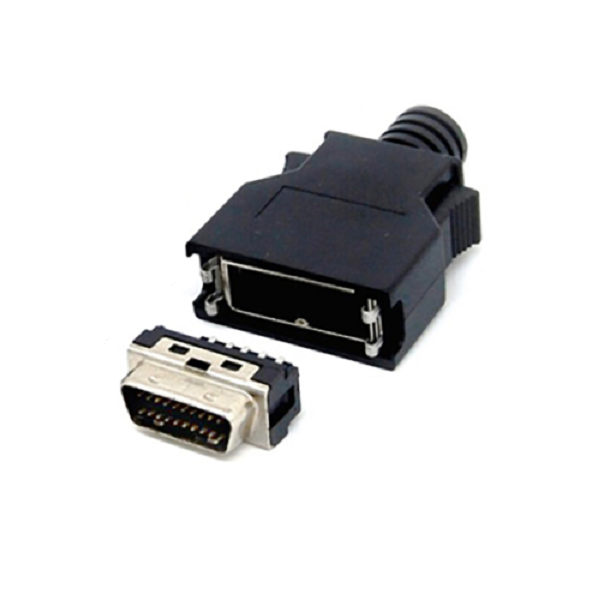

SCSI-II 20Pin Male Connector With ABS Hood(Latch Type)

Part No: B02-020311E0-01 + B02-020N11NX-X1

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Terminal:	Copper alloy,Contact area plated 5u"
Shell:	SPCC,Plated Ni
Housing&Cover:	PBT+30%G.F.,Black
Hood:	ABS Plastic, Black
Latch:	Steel, Plated Ni
Electrical Characteristics:	a) Contact Currect Rating: 1 Amp
	b) Dielectric Withstanding Voltage:500V AC
	c) Insulation Resistance: 500MΩ/Min
	d) Contact Resistance: 35mΩ/Max
	e) Operaion Temperature: -55℃～+105℃
Application:	Industrial Equipment
Environmental standards:	RoHS Compliant
