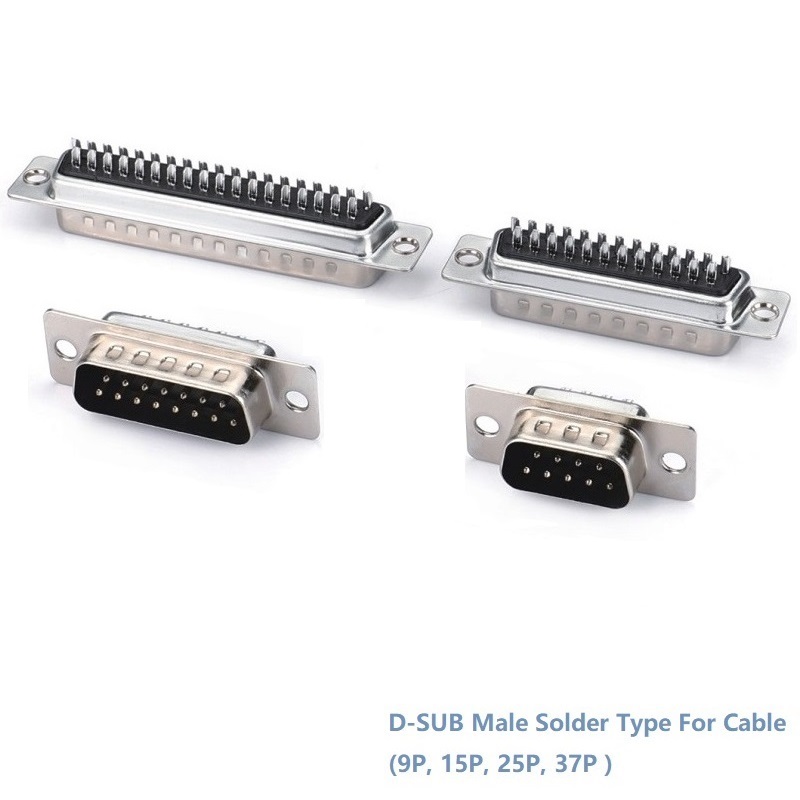

D-SUB Male Solder Type Connector(9P, 15P, 25P, 37P)Series

Part No: B05-0XX3X1AN-01 (With 9P, 15P, 25P, 37P)

DOCUMENTATION

Drawing(.PDF)

3D Model

Specification

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: D-SUB Connectors
Pitch: .109" (2.77mm)

Contacts No: 9, 15, 25 and 37

Application: Cable assembly

Type: Solder type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Gold or Tin over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black)
Shell: SPCC nickel
Hood: NA
Screw: NA

ELECTRICAL PERFORMANCE

Current rating: 3.0A max
Dielectric Withstanding Voltage:250V AC
Insulation Resistance: 1000MΩ/Min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating force: 15N per contact Max.
Unmating force: 0.5N per contact Min.

Environmental

Temperature Rating: -55°C to +105°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
