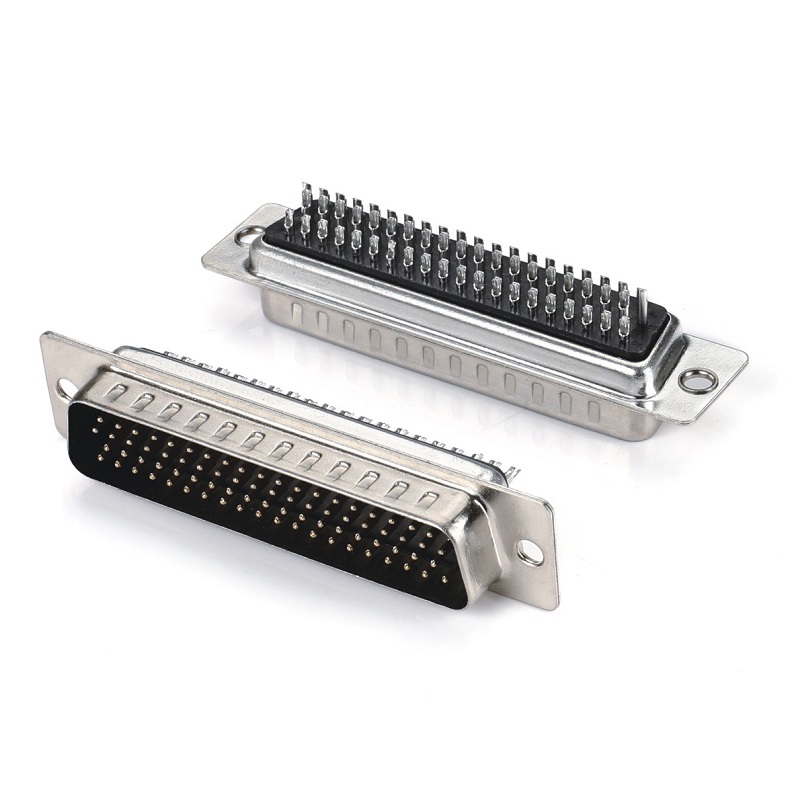

H.D-SUB 78Pin Male Solder Type Connector for Cable

Part No: B04-0783X1AN-01

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Terminal:	Copper alloy, Contact Area Plated Au G/F
Shell:	SPCC,Plated Ni
Housing&Cover:	PBT+30%G.F.,Color: Black / White / Blue
Hood:	NA
Nut:	Steel (If have)
Electrical Characteristics:	a) Contact Currect Rating: 3 AMP
	b) Dielectric Withstanding Voltage:1000V AC
	c) Insulation Resistance: 1000MΩ/Min
	d) Contact Resistance: 30mΩ/Max
	e) Operaion Temperature: -45℃～+85℃
Application:	Industrial Equipment
Environmental standards:	RoHS Compliant
