Amphenol Connector
| PRODUCT FAMILY |
|

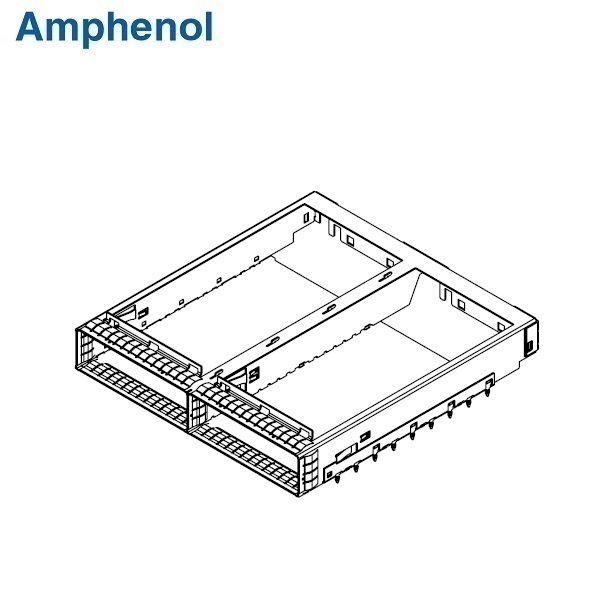

Description: CFP2 Connectors Pitch: 0.60mm Contacts No: 104 Application: Rated for 25Gb/s per channel, Compatible with IEEE and ITU-T applications
Type: Right Angle SMT type |
| MATERIAL |
|
Contact Base Metal: Phosphor Bronze Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing & Spacer: High temperature plastic LCP (UL 94V-0) Cage: Copper alloy or Stainless steel
Heat Sinks and Light Pipes: Available |
| ELECTRICAL PERFORMANCE |
|
Operating Voltage: 3.3 V DC per contact Operating Current: 0.5 A per contact max Differential Impedance: 100Ω +/- 10Ω
|
| MECHANICAL PERFORMANCE |
|
Durability: 200 mating cycles Mating Force: 80 N max. Unmating Force (Cage): 50 N max
|
| ENVIRONMENTAL |
|
Operating and (Storage) Temperature: -40° to +85°C RoHS & Halogen-Free |
| ENVIRONMENTAL COMPLIANCE |
|
RoHS2.0: Compliant REACH SVHC: Yes |
