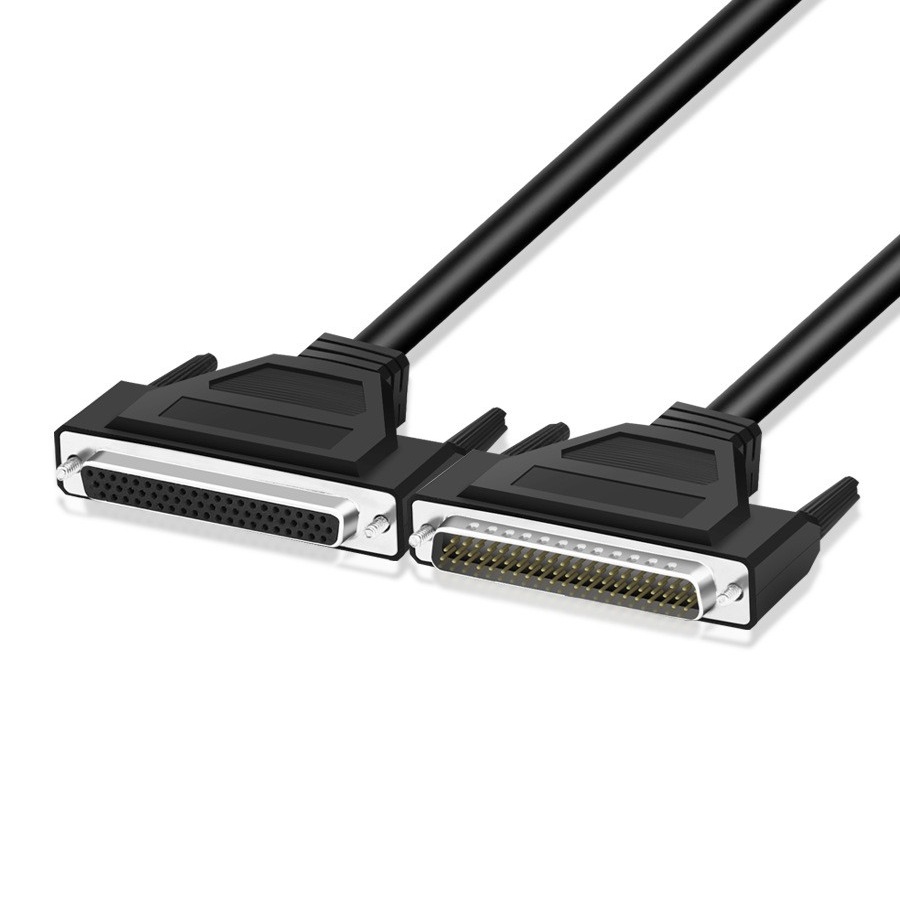

CABLE ASSY
| Part No: FC-HDB062MF-XXA | |
| Connector-1 : | HD D-SUB 62Pin Male Solder Type Connector 4-40# Screw |
| Connector-2 : | HD D-SUB 62Pin Female Solder Type Connector 4-40# Screw |
| Wire SPEC : | UL20276 28AWG*31P +AL.MYLAR+Drain+Braid PVC Jacket OD=10.0mm Color: Black |
| Length : | 0.5m, 1.0m, 2m, 3m, 5m （Customizable） |
| Color : | Black （Customizable） |
| Electrical Characteristics: | a) Current rating: 0.5A max |
| b) Voltage rating: 30VAC, DC 300V 0.01sec. | |
| c) Differential impedance: 100 ± 15 ohm | |
| d) Insulation Resistance: 1M OHMS min. | |
| e) Temperature: -20°C~ +85°C | |
| Application: | Automation Equipment |
| Environmental standards: | RoHS Compliant |
