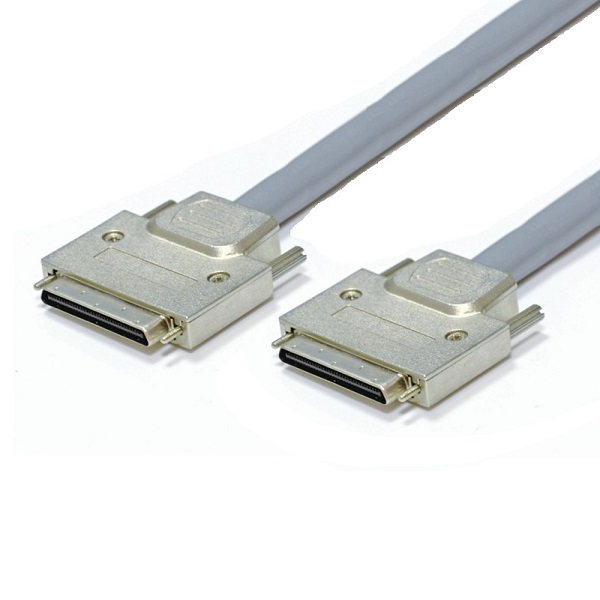

CABLE ASSY
| Part No: A09-06861 XXX-02 | |
| Connector-1 : | VHDCI 68Pin Pitch=0.8mm Male With Zinc Metal Hood M2.0 Screw |
| Connector-2 : | VHDCI 68Pin Pitch=0.8mm Male With Zinc Metal Hood M2.0 Screw |
| Wire SPEC : | UL20276 28AWG*34P +AL.MYLAR+Drain+Braid PVC Jacket OD=10.0mm Color: Black |
| Length : | 0.5m, 1.0m, 2m, 3m, 5m （Customizable） |
| Color : | Black （Customizable） |
| Electrical Characteristics: | a) Current rating: 0.3A max |
| b) Voltage rating: 30VAC | |
| c) Differential impedance: 100 ± 15 ohm | |
| d) Insulation Resistance: 1000MΩ min. | |
| e) Temperature: -20°C~ +85°C | |
| Application: | Automation Equipment |
| Environmental standards: | RoHS Compliant |
